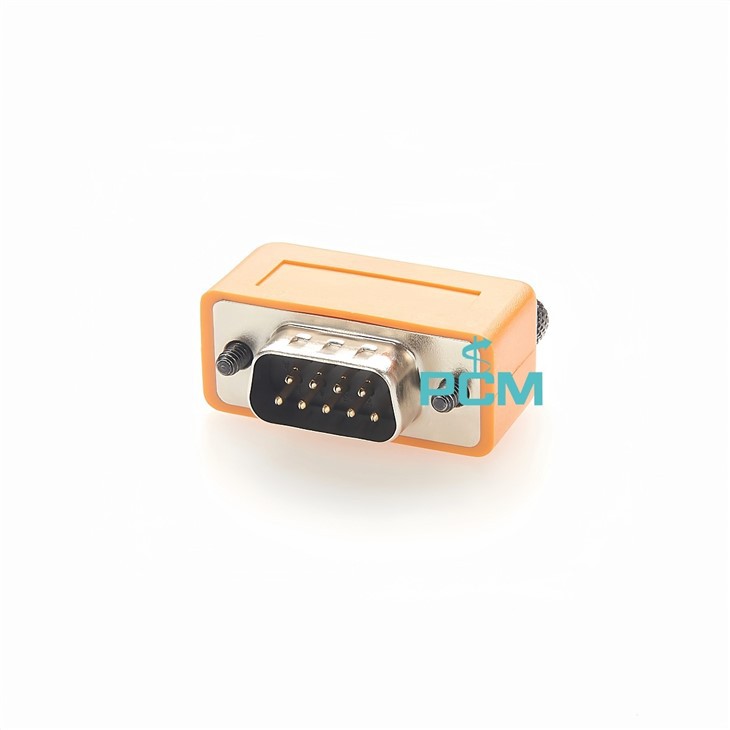

Drawing of Terminal Resistor 120 Ohm DB9 CAN Bus
Specification of CAN Bus Terminator D-Sub 9 Pin DB9 120ohm
|
|

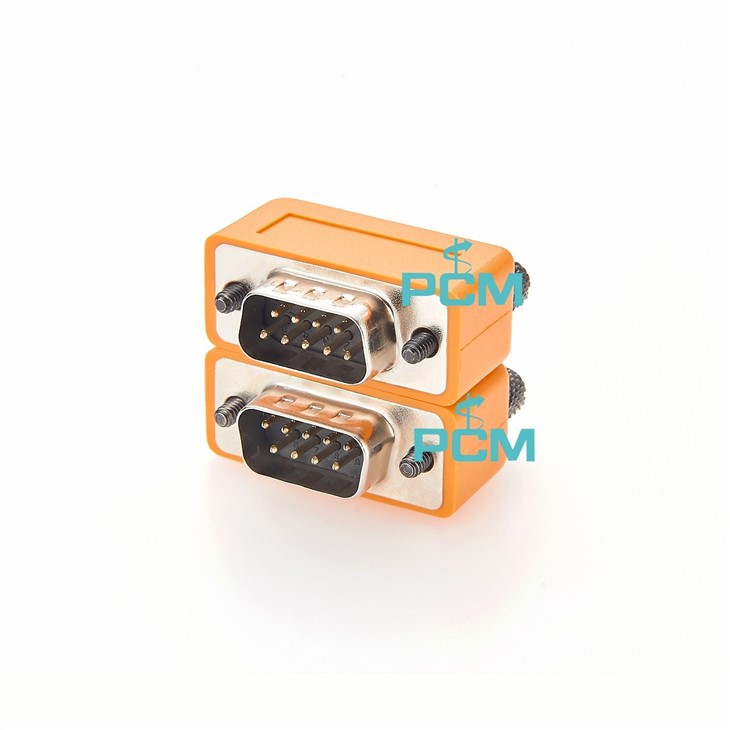

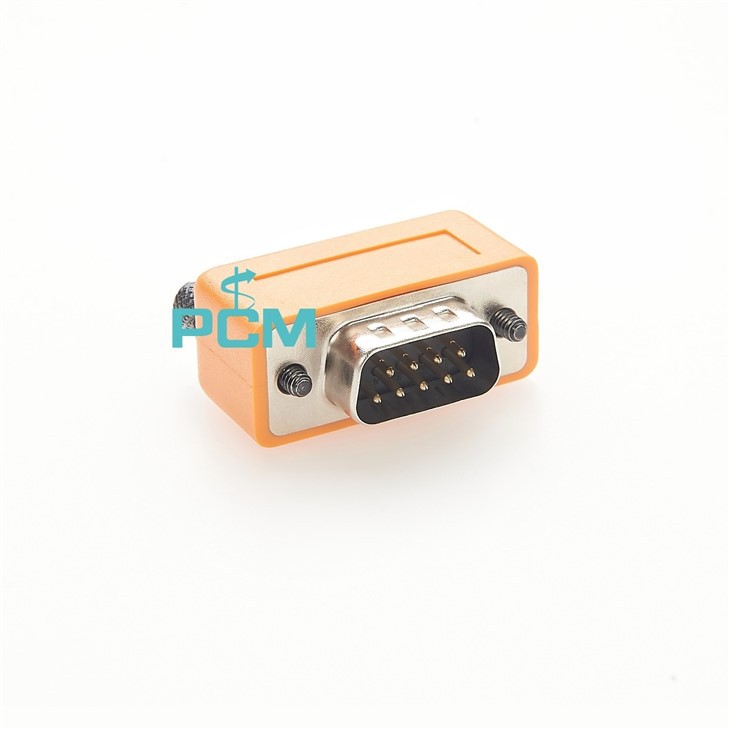

CAN Termination Plug with D-Sub9 connector |
|
|
PCM-0400 DB9 plug terminator |
|
|

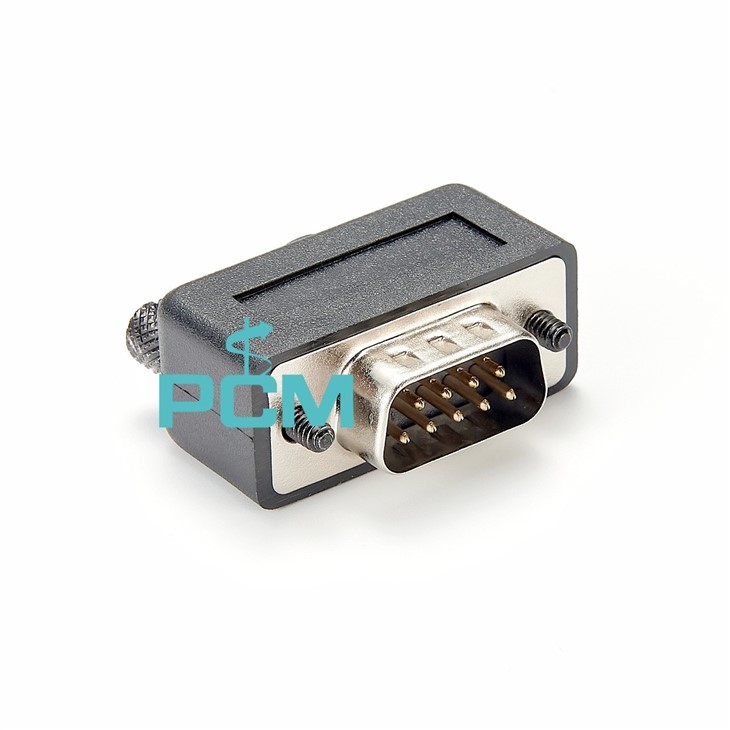

DB9 Male connector |
| 120 0hm Resistor in 2&7 pin | |
|
|
9 Pin |
|
|
45P PVC |
|
|
|
|
|
|

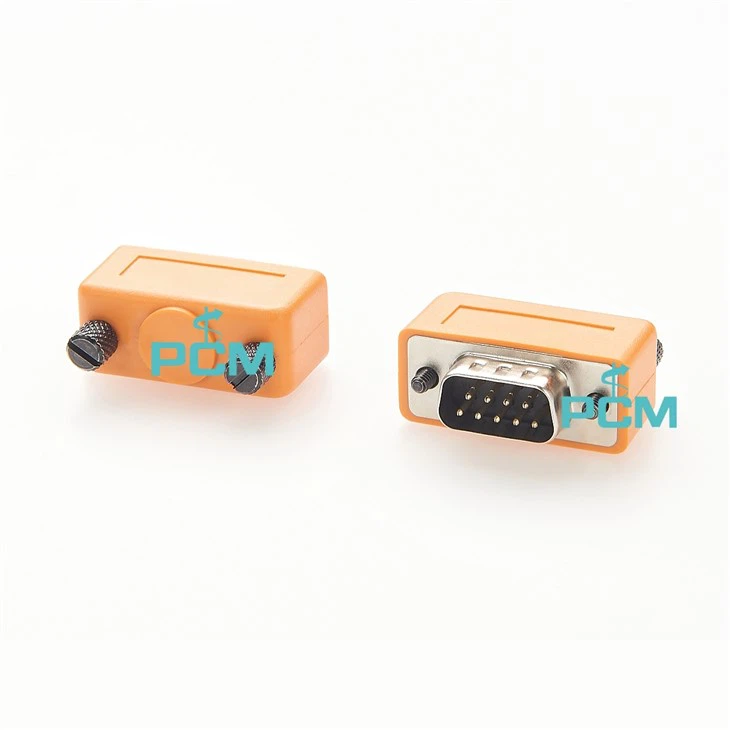

Function of DB9 Male CAN Bus Terminator
This CAN bus termination resistor is a D-sub 9 pin male connector. It contains a 120 Ohm 1/4W terminal resistor between the CAN High,CAN Low pins.
With the CAN terminating plugs bus termination can be realized with D-Sub9 connectors according to CiA 102 version 3.0.0 CAN physical layer for industrial applications
Application of DB9 Terminal resistance
This terminal plug is widely used in automotive electronics, industrial automation, and various devices and systems that require CAN communication to ensure high-quality signal transmission. Whether developing a new CAN network or maintaining an existing system, the CAN Terminator 120 Ohms DB9 Male Plug is an important component for achieving reliable connections and optimizing network performance. Its rugged design ensures stability even in harsh environments, providing users with a long-term use experience.
